Sabvoton 48V-72V MQCON SVMC7245 with UKC1 Display and PAS 1KW 45A 60KMH Electric Bike Scooter Bldc Motor Controller

Sabvoton 48V-72V MQCON SVMC7245 with UKC1 Display and PAS 1KW 45A 60KMH Electric Bike Scooter Bldc Motor Controller

The controller and the display are both APT protocol. We recommend this convert kits for BLDC motor 1kw with hall sensor, which with good performance for electric bicycle.

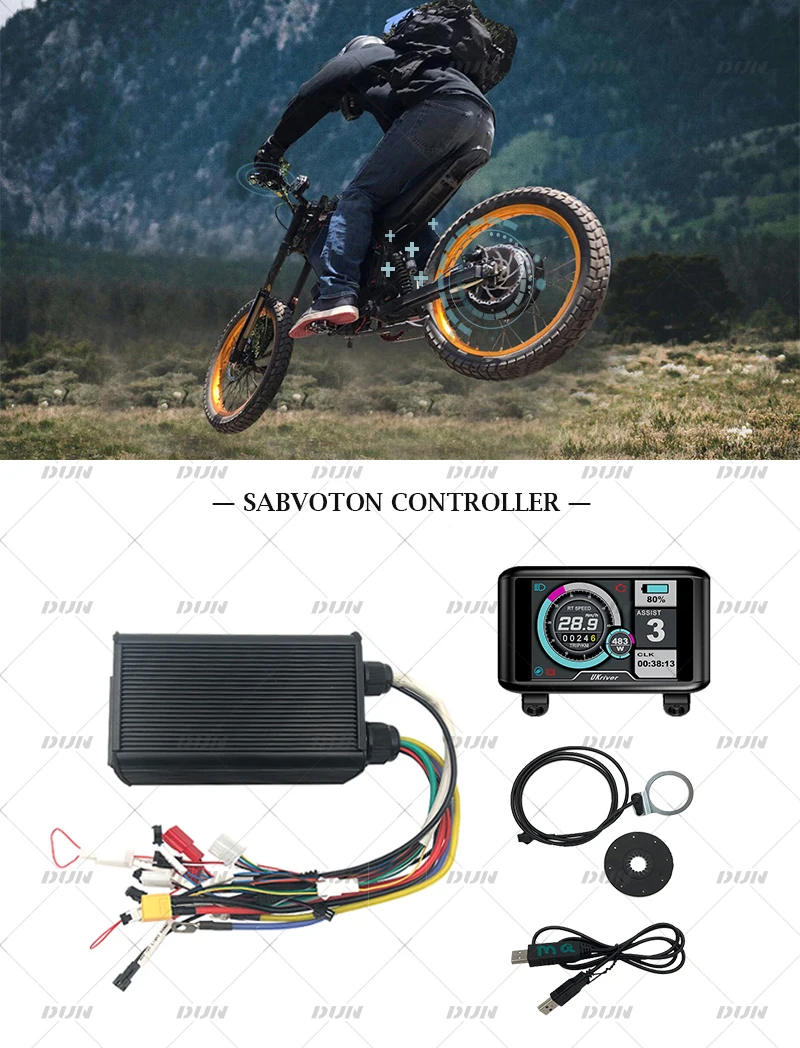

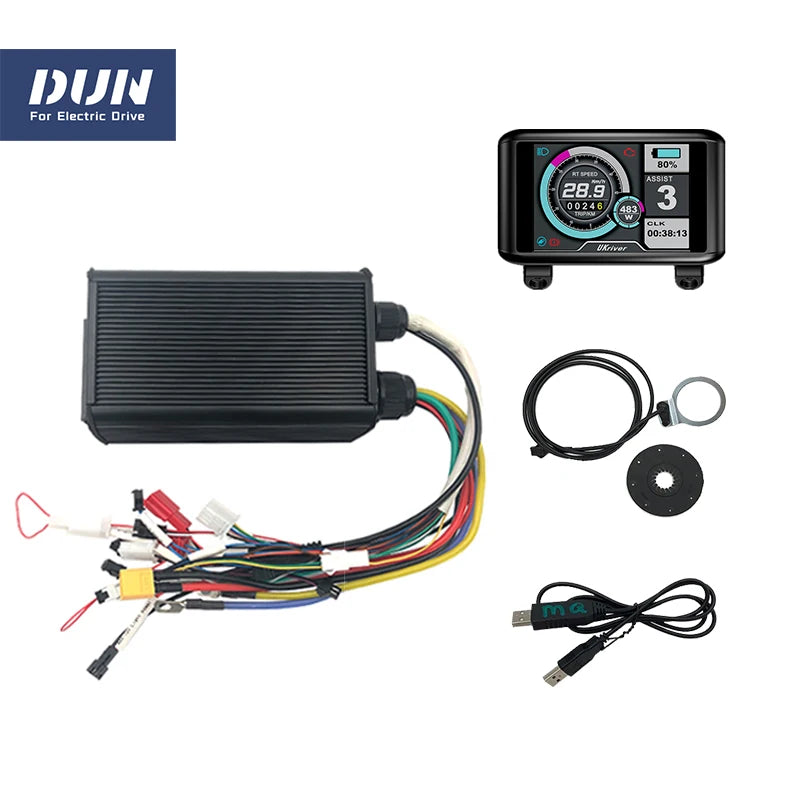

Package Including

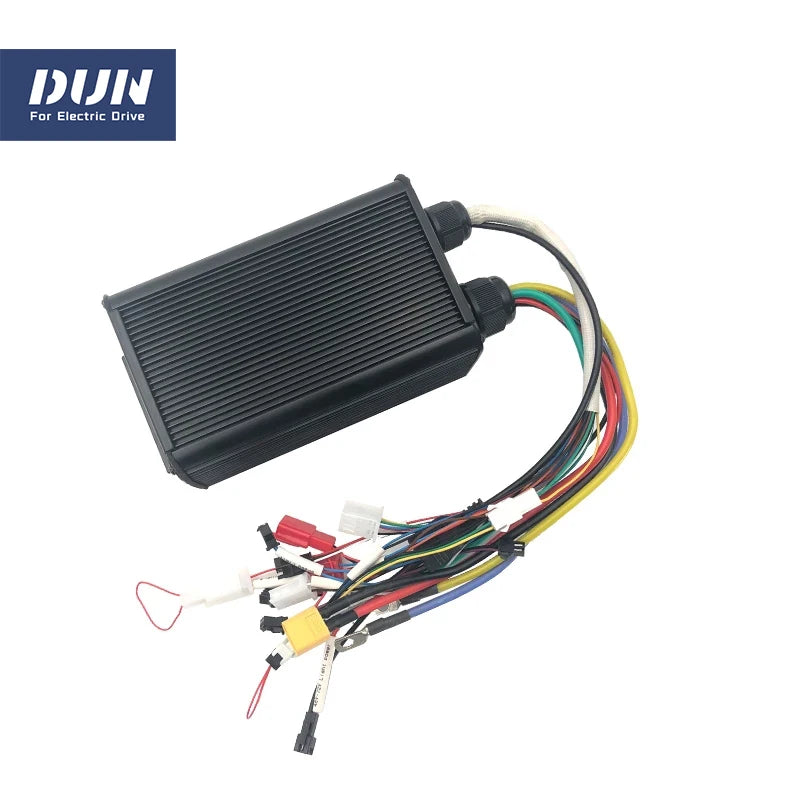

1 pc x Sabvoton SVMC7245-UKC1 controller

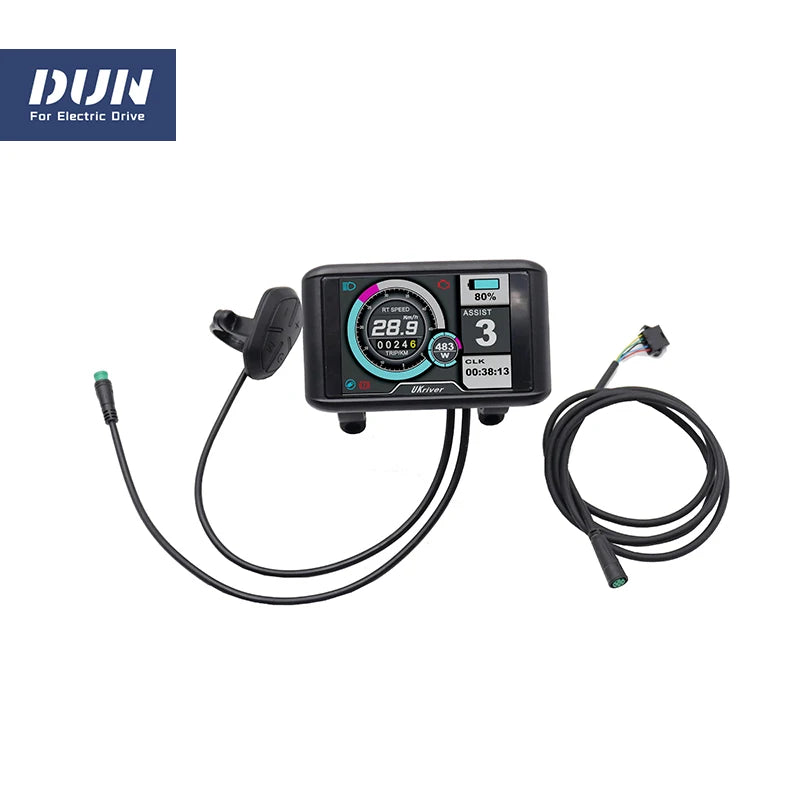

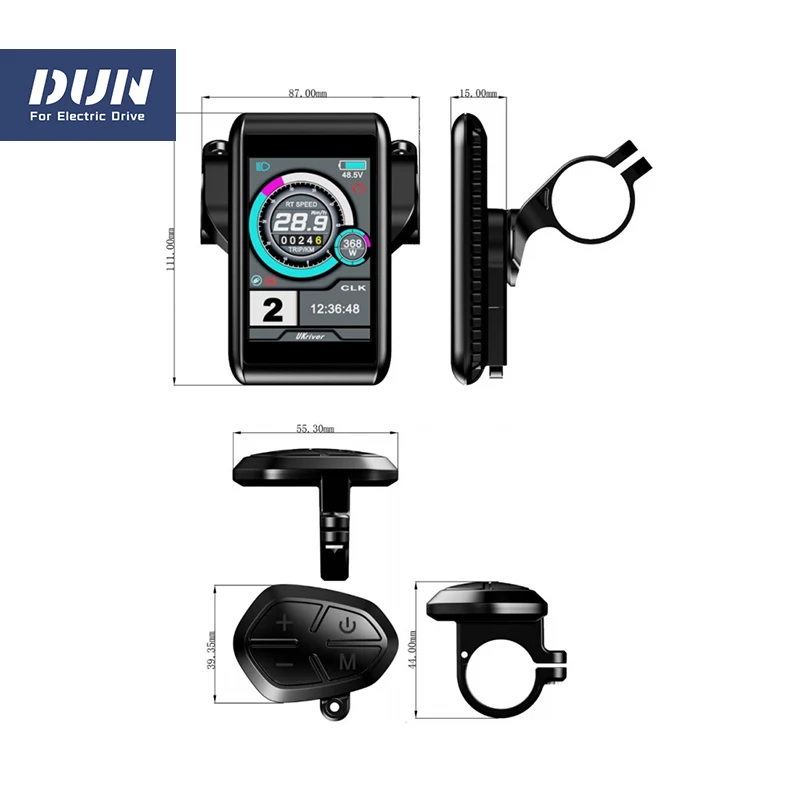

1 pc x UKC1 Display

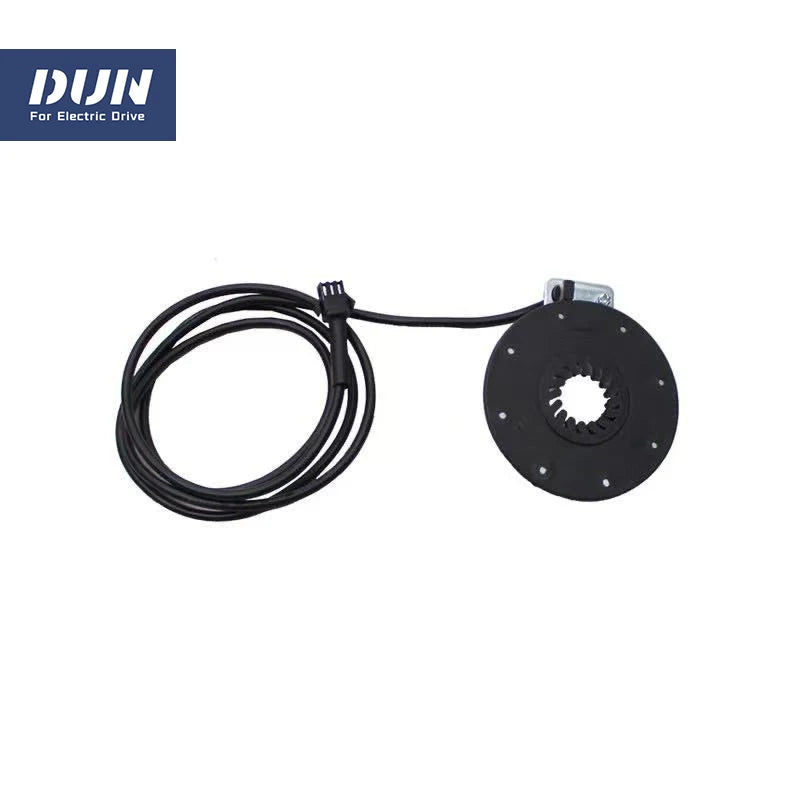

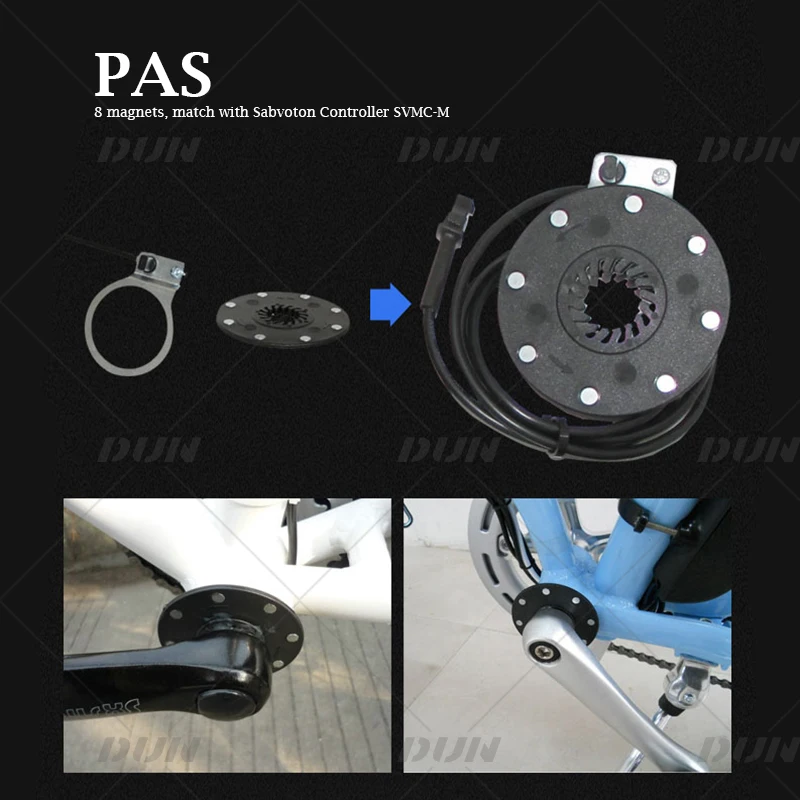

1 pc x PAS 8 Magnets
1 pc x USB cable
1 pc x Bluetooth (optional)
1 pc x Maunals & Software Link for download

Key Feature

1) FOC sine wave controller is applied to BLDC or PMSM motor.
2) Start the Hall angle test, and obtain the best Hall angle of the motor for the first time within 3 minutes.
3) Minimize torque pulsation, realize noise-free, vibration-free operation, and high comfort.
4) Work efficiently, reduce calorie consumption and extend mileage.
5) Built-in protection chip: blocking protection, overcurrent protection, overheat protection, overvoltage protection, etc., to ensure the safety of the system and the drive.

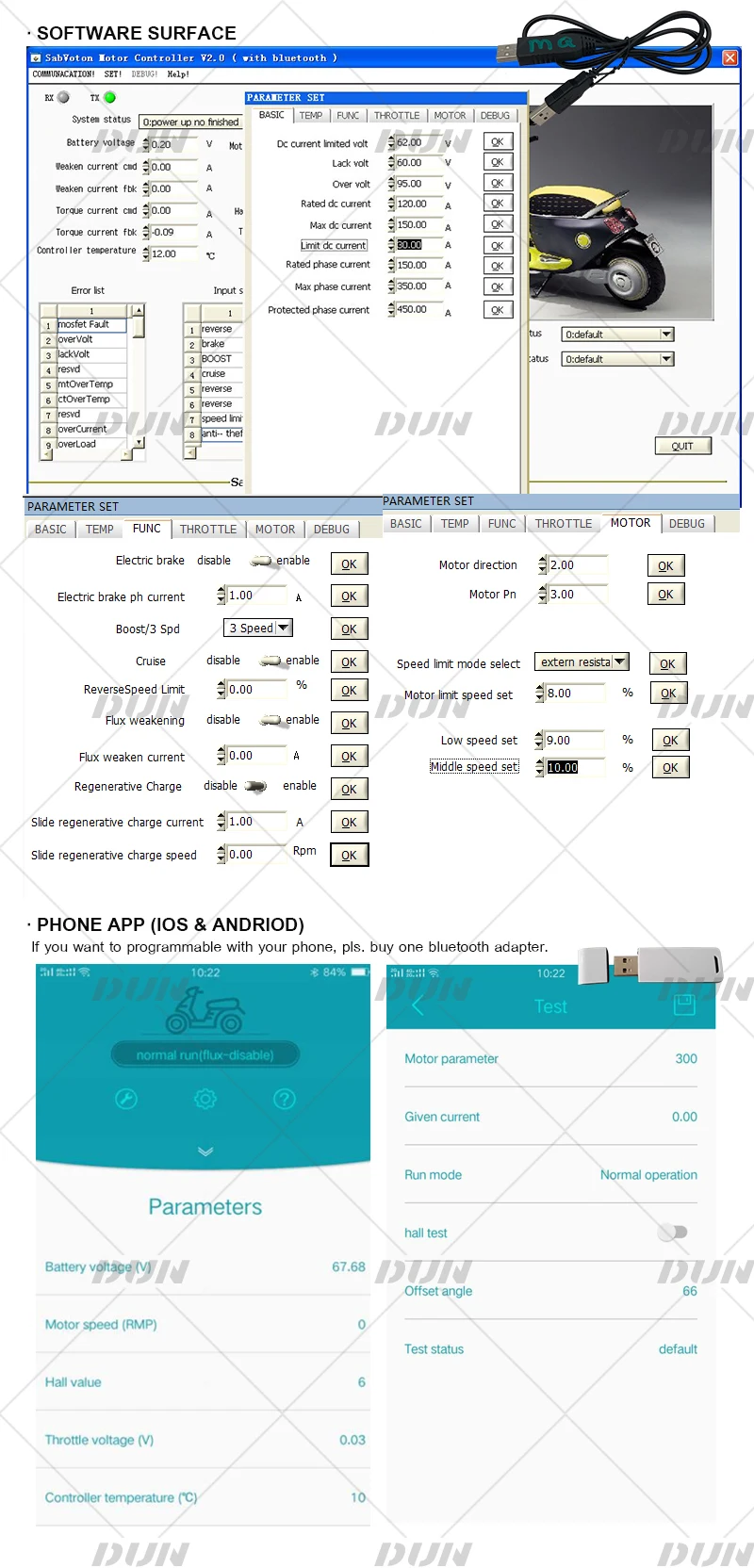

6) Easily modify the relevant parameters and functions of the controller through a computer or mobile phone.

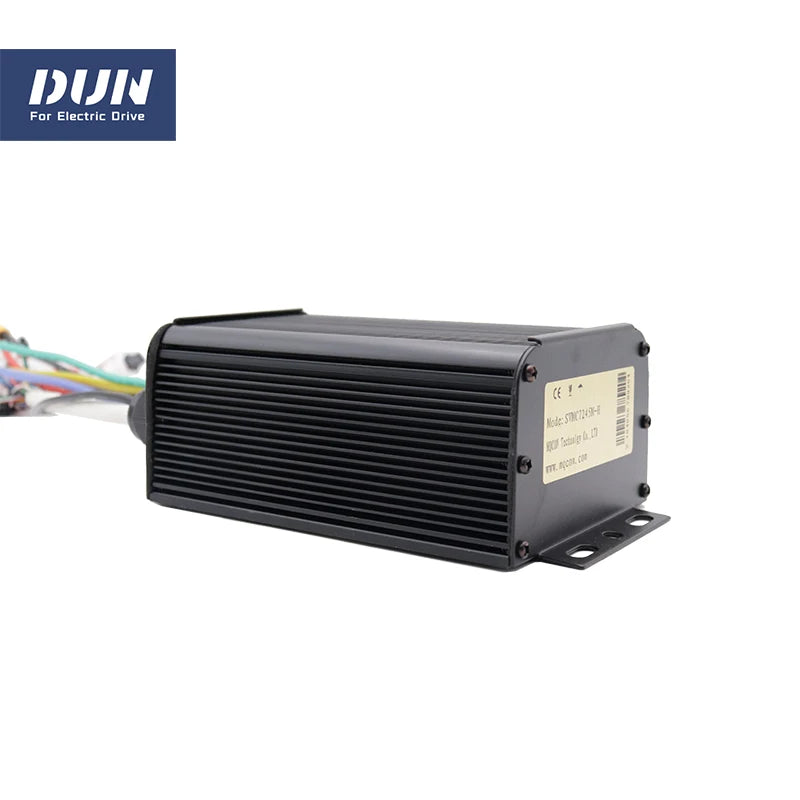

Controller Spec

Sabvoton controller is suitable for Spoke/In-wheel/Hub motors with 120° Phase angle.
But it may NOT work properly with a Mid-Drive motor.

MQ(Sabvoton) Brusless DC Motor Controller - SVMC7245-M
1) Model: SVMC7245-M
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 0.8KW - 1KW
4) Phase Peak Current: 135A
5) DC Current: 45A
6) Working Communication: Hall Sensor

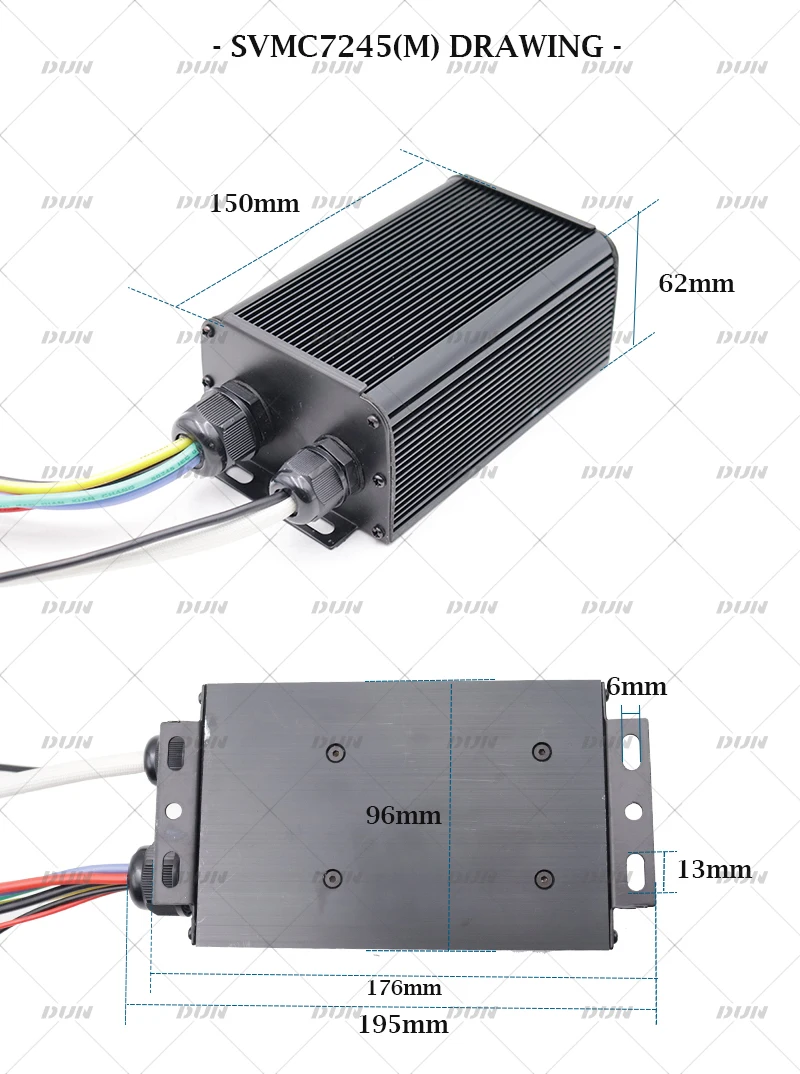

7) Instaliing Size: 195mm * 96mm * 62 mm
8) Weight: 1.2kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 12FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave Brushless DC Motor Controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
