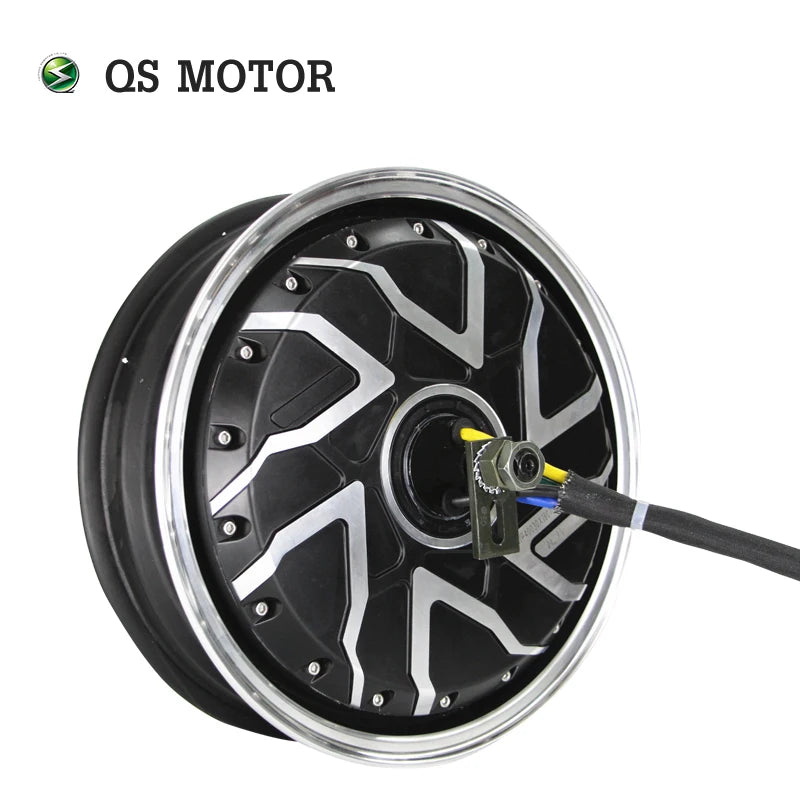

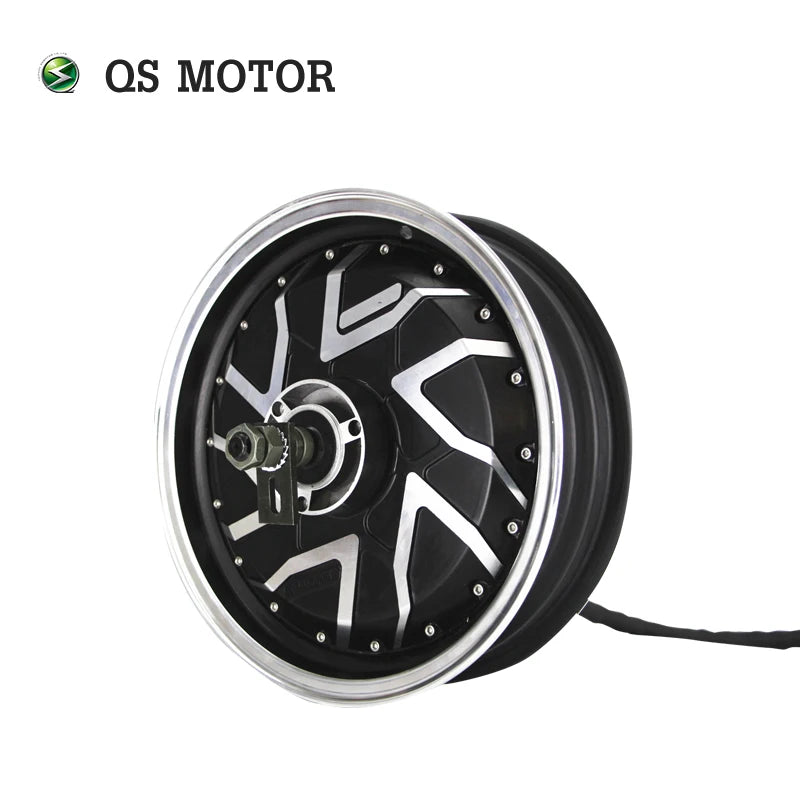

QS Motor 13inch 3000W 260 40H V3 BLDC Electric Scooter Motorcycle Hub Motor

If you have any questions, Please contact our customer service:

WhatsApp: +86 18670052861

Email: 3152366596@qq.com

QS Motor 13inch 3000W 260 40H V3 BLDC Electric Scooter Motorcycle Hub Motors

QS Motor Specification

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
• Brand: QS Motor,QSMOTOR

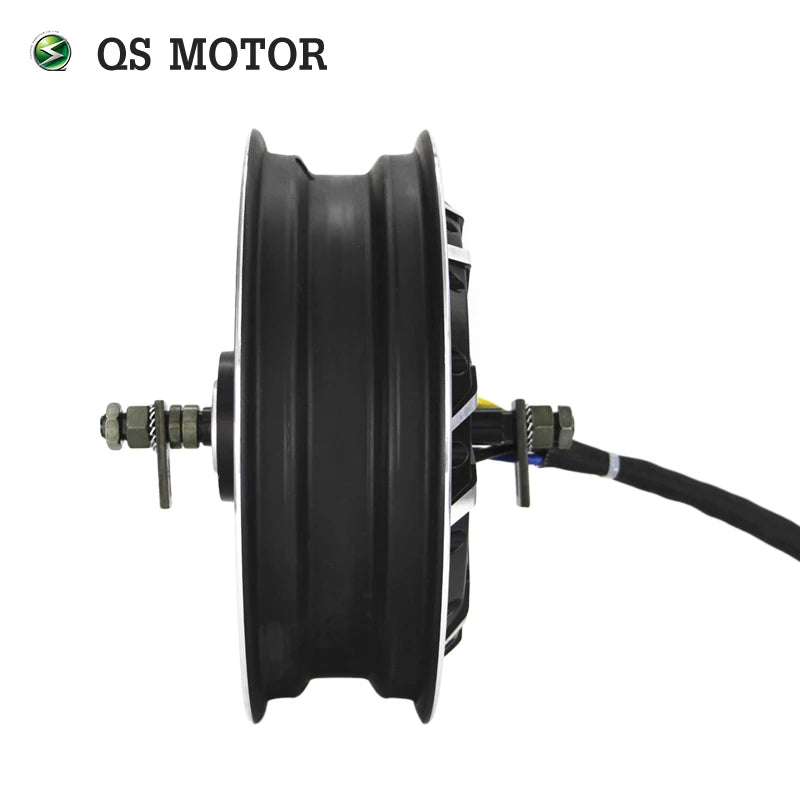

• Motor Design: Double axle with 13inch moped rim (integrated)
• Rim size: 13x3.5inch
• Magnet Height: 40mm, 16pole pairs
• Stator: Aluminum Core
• Rated Power: 3000W
• Speed(customizable):

48v 30km/h~70km/h

60v 30km/h~70km/h

72v 30km/h~70km/h

• Max Torque approx 190N.m
• KV:14.7/16.55/16.59/16.08/13.13/14.17 (optional)
• Thermic Probe: KTY83-122 (as default, optional)
• Max Efficiency approx 88%
• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
• Drop-outs: 200mm
• Dual Halls with waterproof connectos(One for spare, in case of damage)
• 10mm² Phase Wire
• Waterproof Grade: IP54
• Color: Black (as default), Yellow or White/Luminous

PS. For delivery cost, please contact with us if it's not reasonable.

We will modify it after place the order on-line (before payment).

When place the order online, please leave the message about the KV and your E-mail address.

(For how to choose the KV, please feel free to contact with us. E-mail used for details confirm)
