Electric Kick Scooter Conversion Motor Kit 24V 36V 250W 5Inch Rear Hub Motor Controller Throttle Set Bldc Gearless Hub Motor Kit
Electric Kick Scooter Conversion Motor Kit 24V 36V 250W 5Inch Rear Hub Motor Controller Throttle Set Bldc Gearless Hub Motor Kit
Regular price
231.990 JOD
Regular price
Sale price
231.990 JOD
Quantity
Couldn't load pickup availability
Product Overview

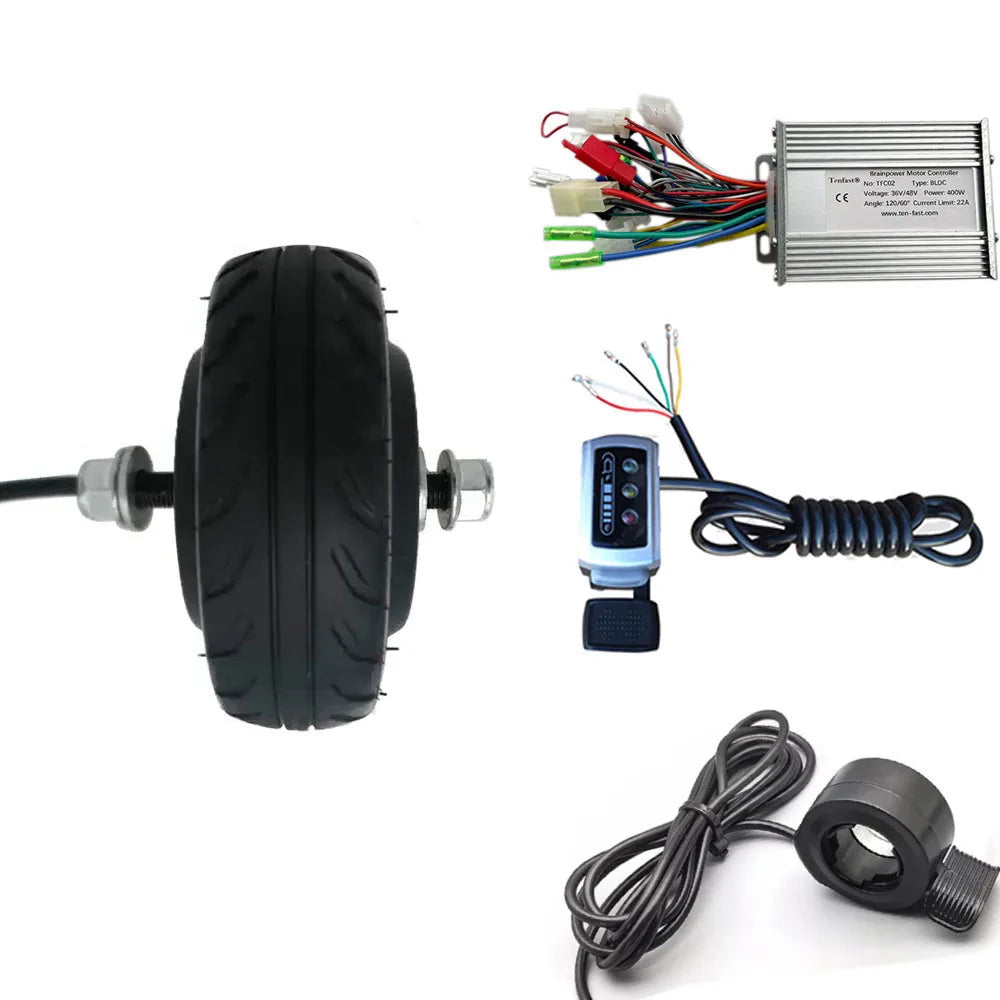

5 inch 24V/36V 250W Brushless Gearless Hub Motor with matched controller, thumb throttle, ebs brake handle, a wheel motor set you can make a electric scooter or DIY your electric vehicle with your inspiration
Products Description
Motor Parameters
|
Brand
|
TECICLO
|
|
Model
|
T-HM-005
|
|
Size
|
5inch (128mm锛�
|
|
Motor Type
|
DC brushless gearless hub motor
|
|
Voltage
|
24V/36V
|
|
Power
|
250W
|
|
Rated current
|
10A
|
|
Rated Speed
|
800 rpm
|
|
Max Speed
|
1600 rpm
|
|
Rated Torque
|
3 N/m
|
|
Max Torque
|
8 N/m
|
|
Brake method
|
EBS
|
|
Weight
|
2kg
|
|
WIth Hall Sensor
|
Yes
|
|
Tire type
|
solid rubber
|
|
Ambient temperature
|
—20~+40鈩�
|
|
Max Load
|
100kg
|
|
Waterproof grade
|
IP54
|

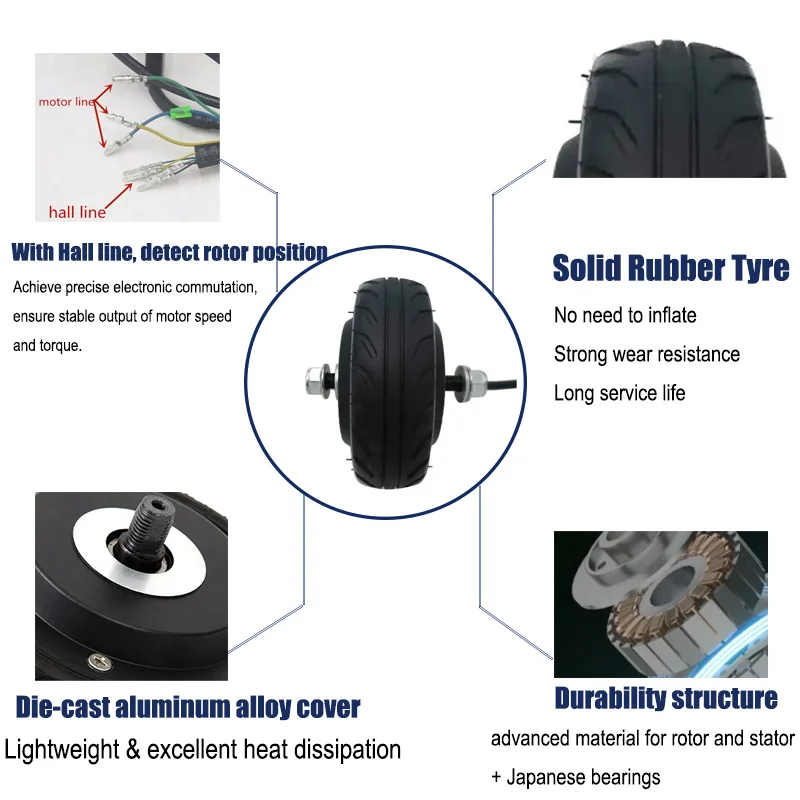

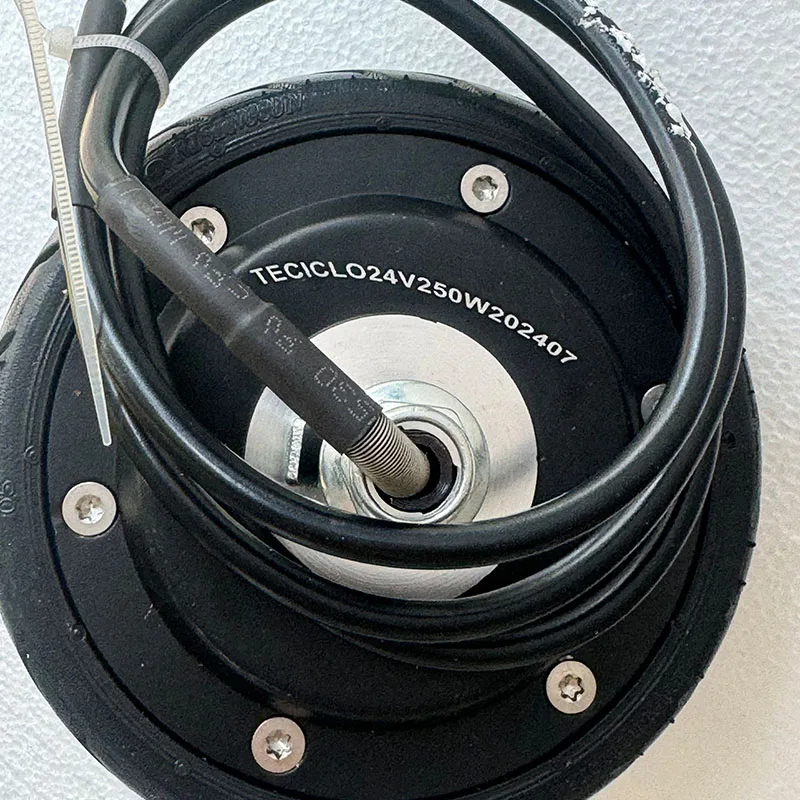

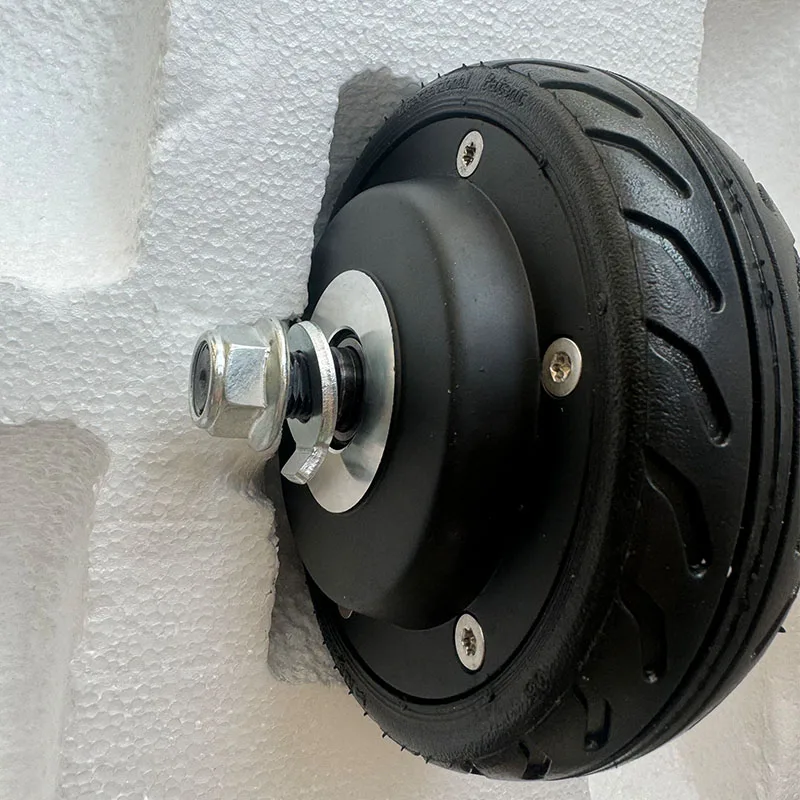

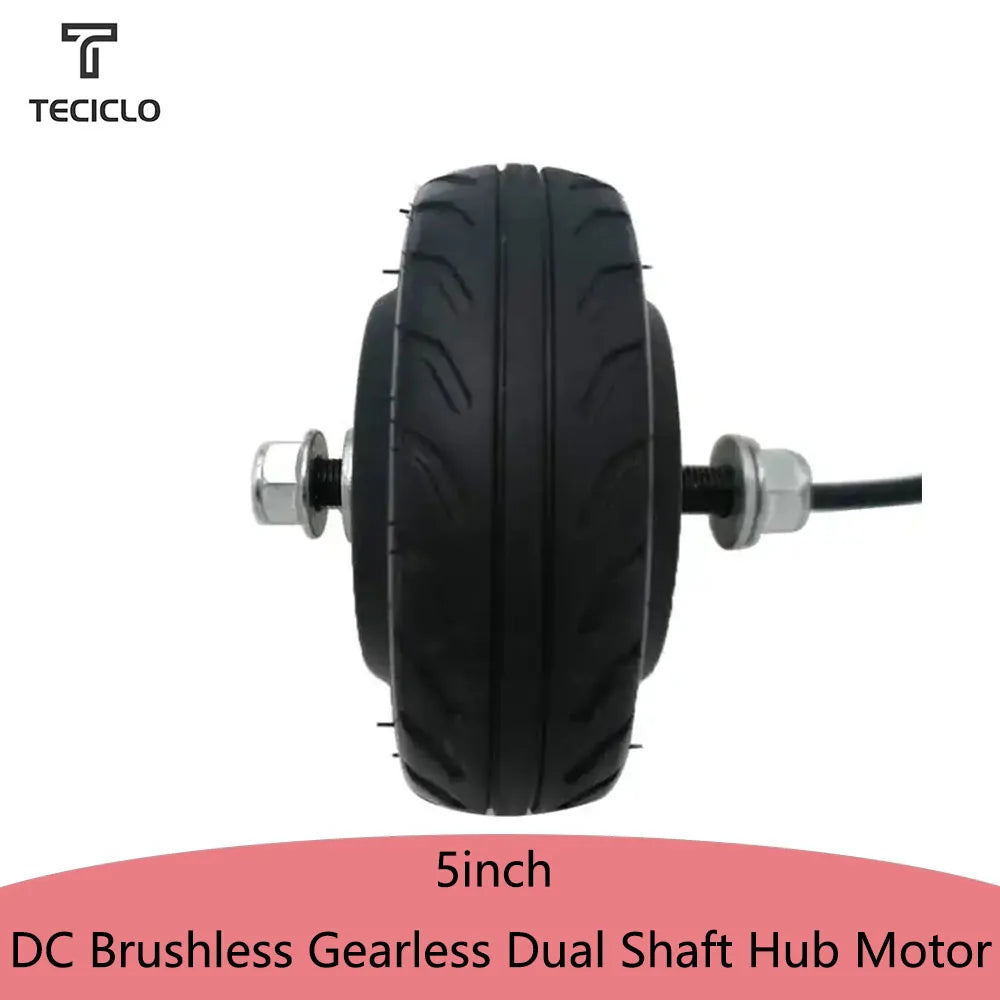

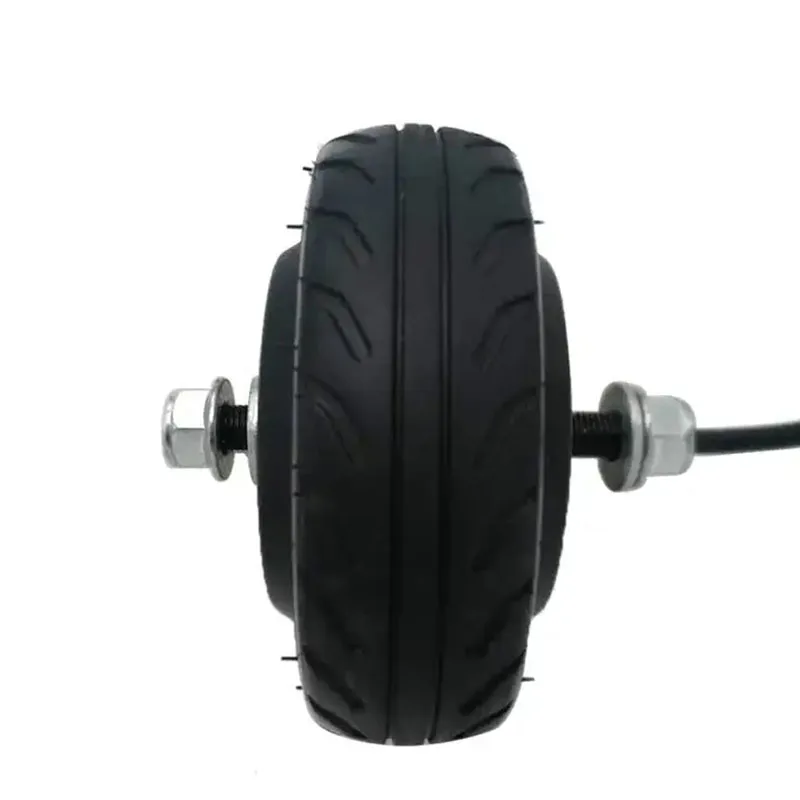

Motor Pictures

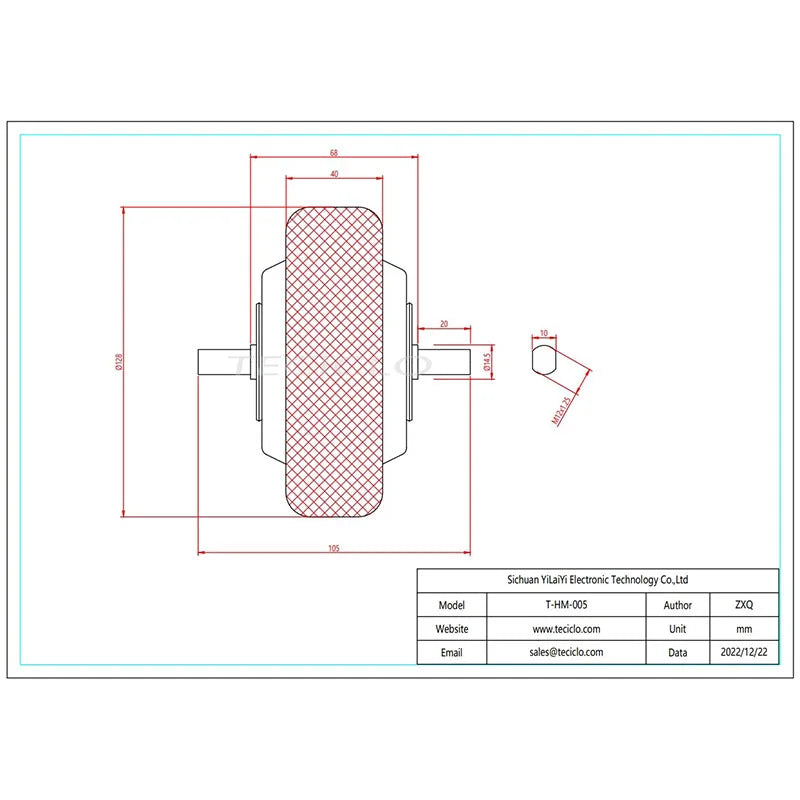

Drawing

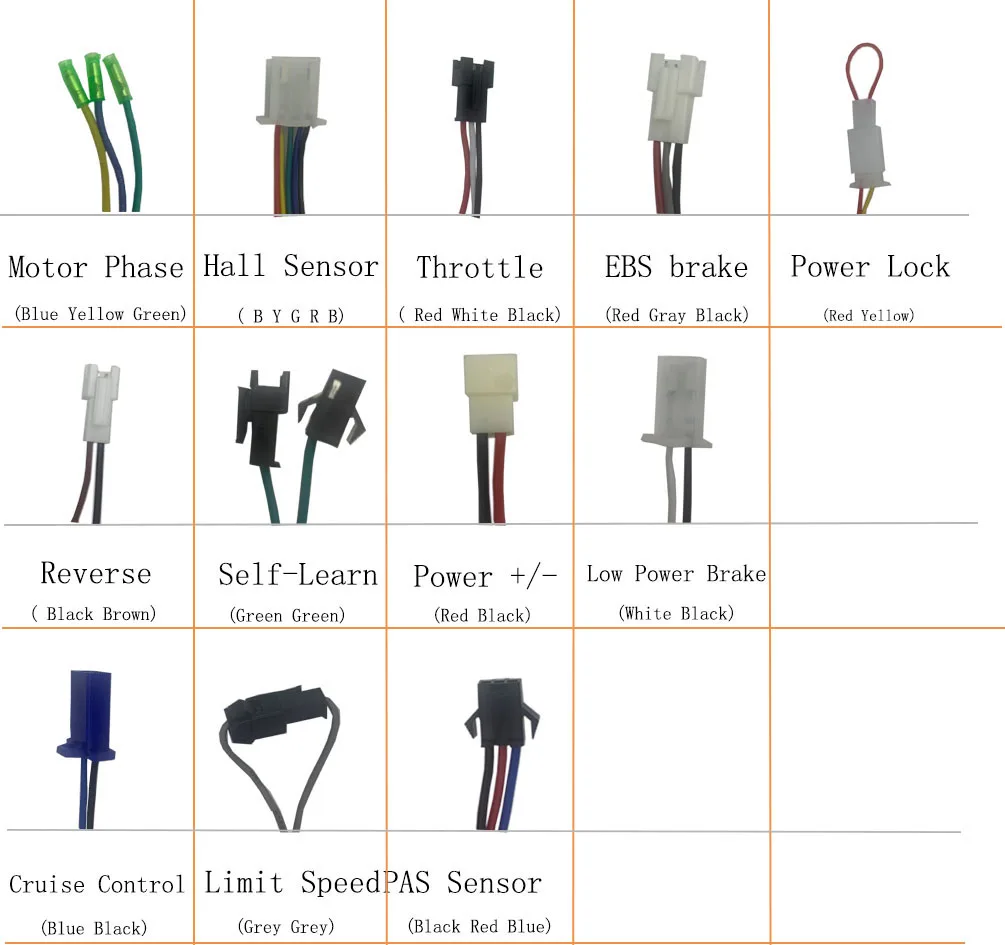

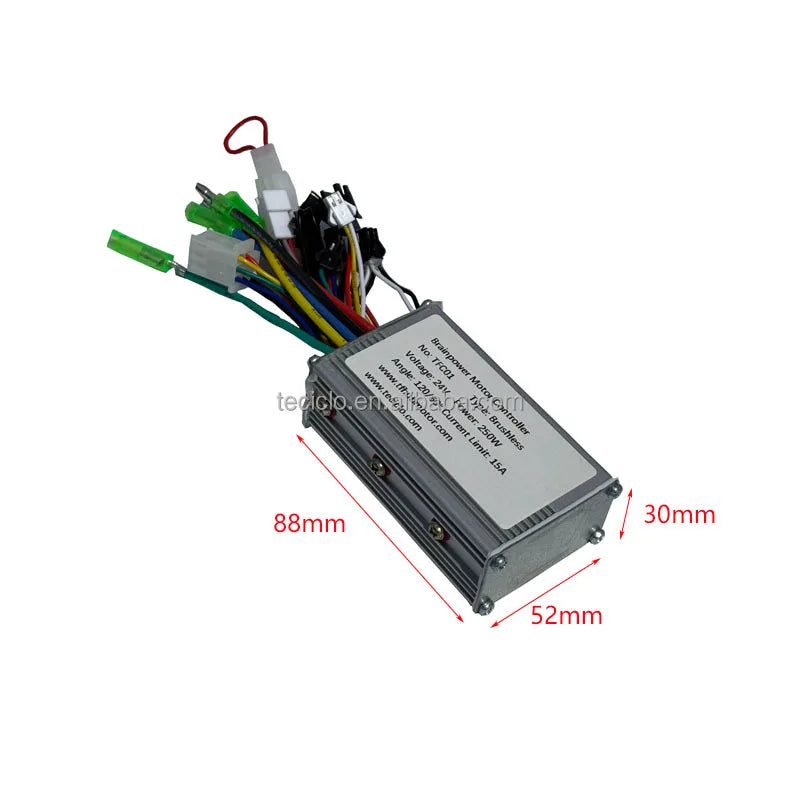

Controller Parameter
|
Model
|
TFC01
|
|
Type
|
dc brushless motor controller
|
|
Material
|
aluminum alloy
|
|
Item color
|
silver
|
|
Rated voltage
|
DC24V
|
|
Rated power
|
250W/350W
|
|
Maximum current
|
10-21A(default 13A)
|
|
Brake input
|
low-level
|
|
Connector
|
normal connectors
|

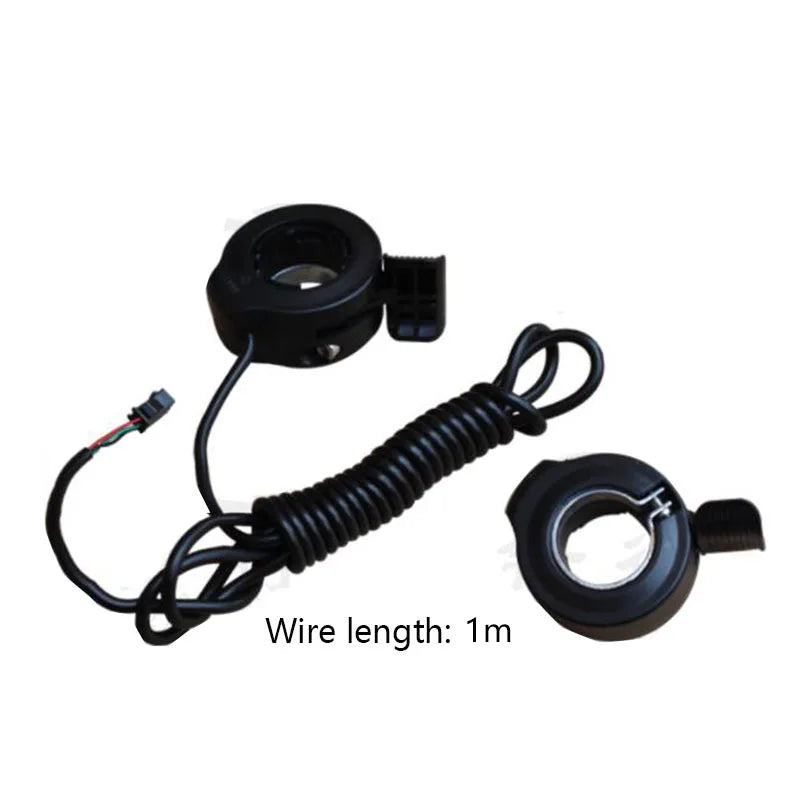

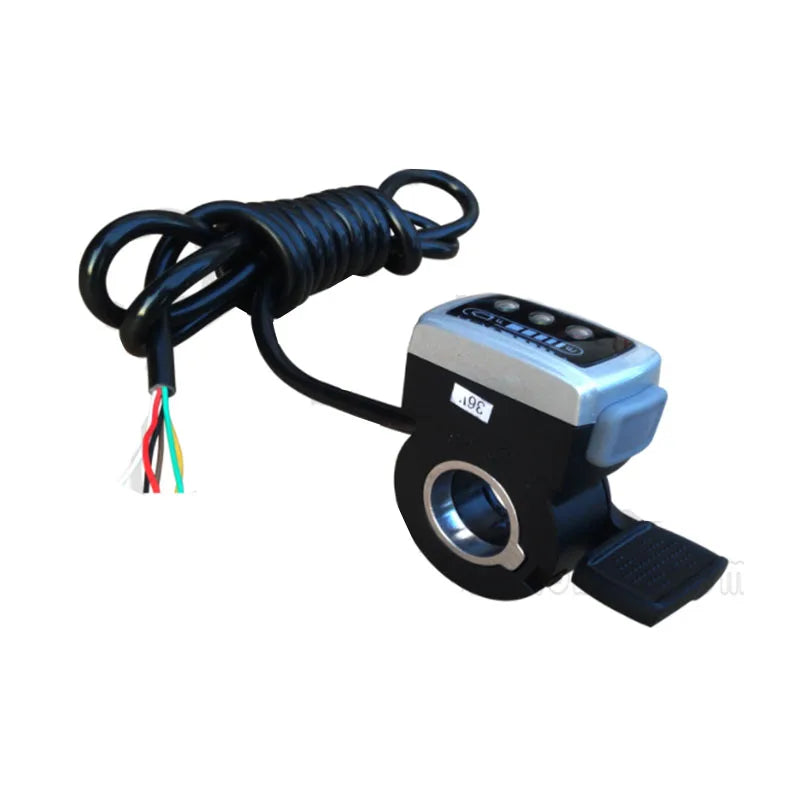

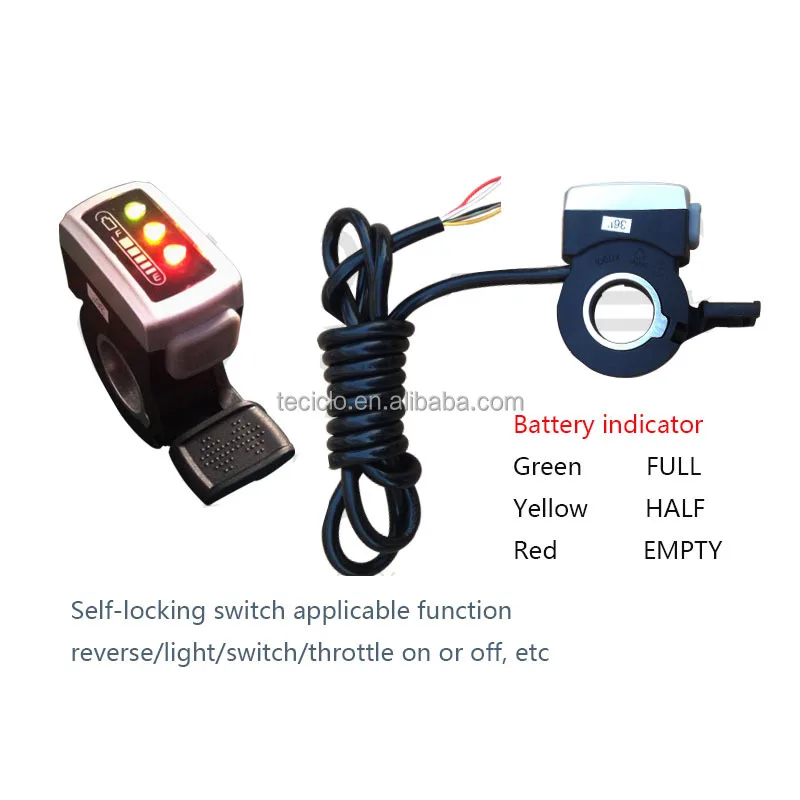

Thumb Throttle
|
Voltage
|
DC 24V 36V 48V
|
|
Type
|
thumb throttle with on-off switch and battery indicator
|
|
Working Voltage
|
5V
|
|
Output Voltage
|
0.8-4.2V
|
|
Size
|
L 69mm W 69mm H 30mm
|
|
Wiring
|
Six Core wiring
|
|
Wiring Lengh
|
1.5M
|
|
Materials
|
PC/ABS
|
|
Waterproof
|
IPX5
|
